Ferrobend manufactures and supplies premium quality Flat Face Weld Neck Flanges (FF) designed for secure and reliable connections in industrial piping systems. Featuring a long tapered hub and a flat gasket seating surface, FF Weld Neck Flanges provide smooth load transfer, accurate pipe alignment, and dependable gasket sealing when properly assembled. They are suitable for water treatment, utility piping, low-pressure services, and industrial applications where flat-face flange compatibility is required.

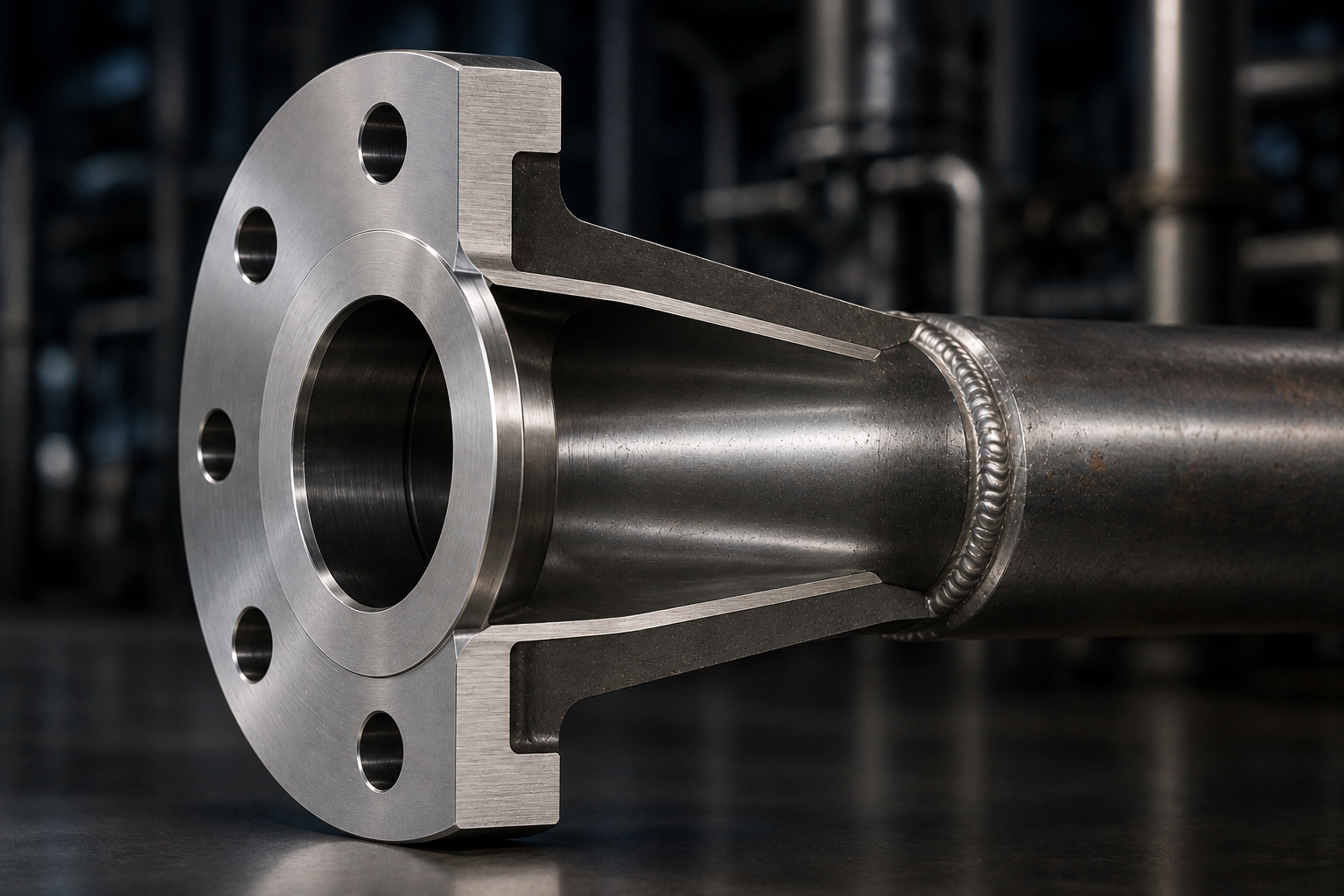

A Flat Face Weld Neck Flange (FF WN Flange) is a forged pipe flange featuring a long tapered hub and a flat gasket seating surface. The hub is butt-welded directly to the pipe, providing gradual stress transfer and excellent structural support for demanding piping connections.
Unlike Raised Face Flanges, the flat face extends across the full flange face, allowing the use of a full-face gasket and more uniform load distribution during bolting. This makes Flat Face Weld Neck Flanges particularly suitable for cast iron equipment, FRP piping, plastic-lined pipelines, and other systems where excessive localized flange loading should be avoided.
With their robust weld neck design and flat sealing surface, these flanges are commonly used in low to moderate-pressure piping systems where equipment compatibility, structural integrity, and reliable gasket sealing are important.
Flat face design helps distribute bolt load more evenly across the flange face.
Suitable for cast iron, FRP, glass-lined, and plastic-lined piping systems.
Accommodates a full-face gasket for broad and consistent gasket contact.
Long tapered hub provides a robust pipe-to-flange connection with gradual stress transfer.
Helps minimize localized flange loading where raised-face connections may be unsuitable.

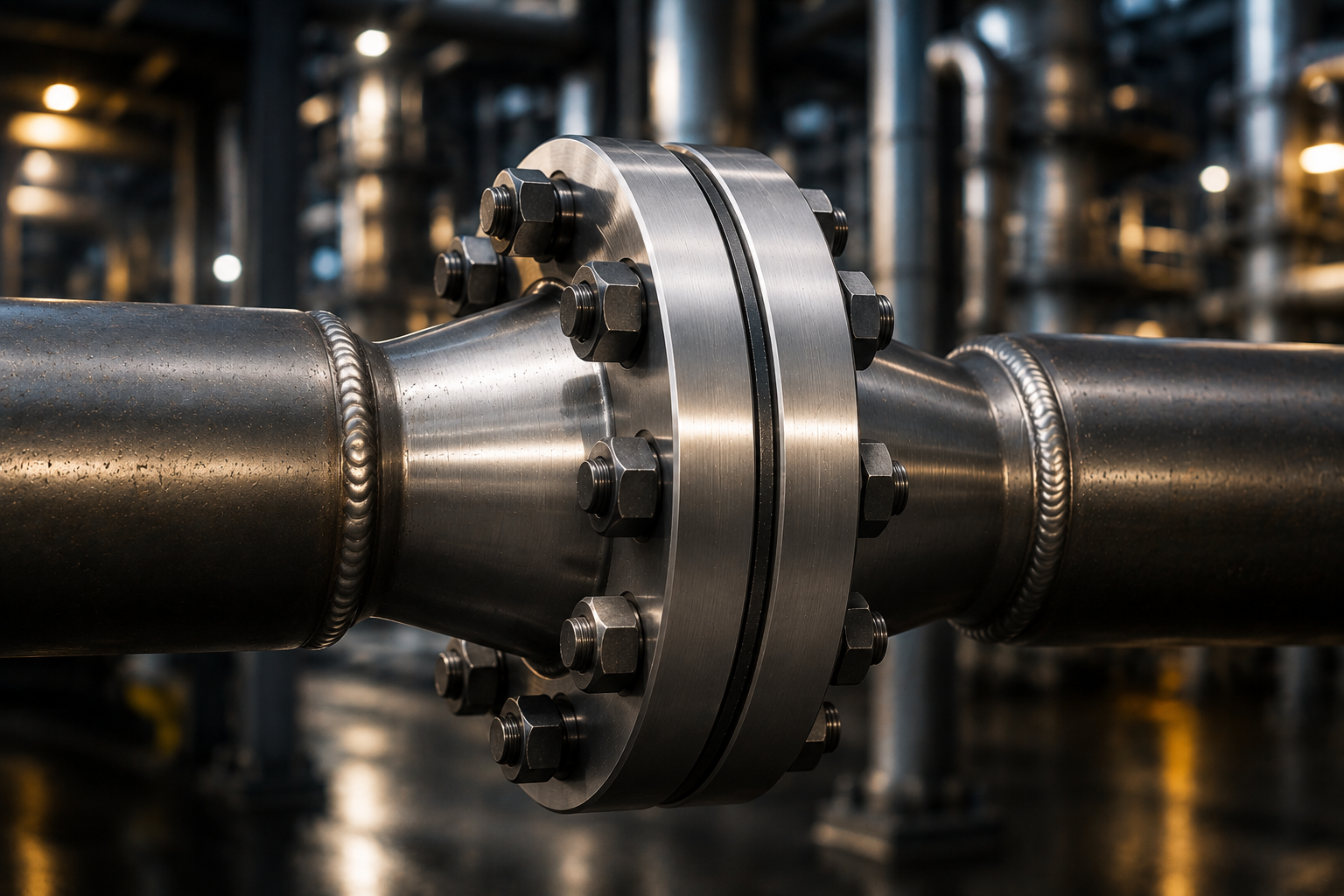

Flat Face Weld Neck Flanges are preferred where uniform flange loading and compatibility with sensitive or lower-strength equipment are important. Their full-face gasket arrangement and long tapered hub provide a reliable bolted connection while helping reduce localized loading on connected components. This makes them suitable for cast iron, FRP, glass-lined, and plastic-lined piping systems.

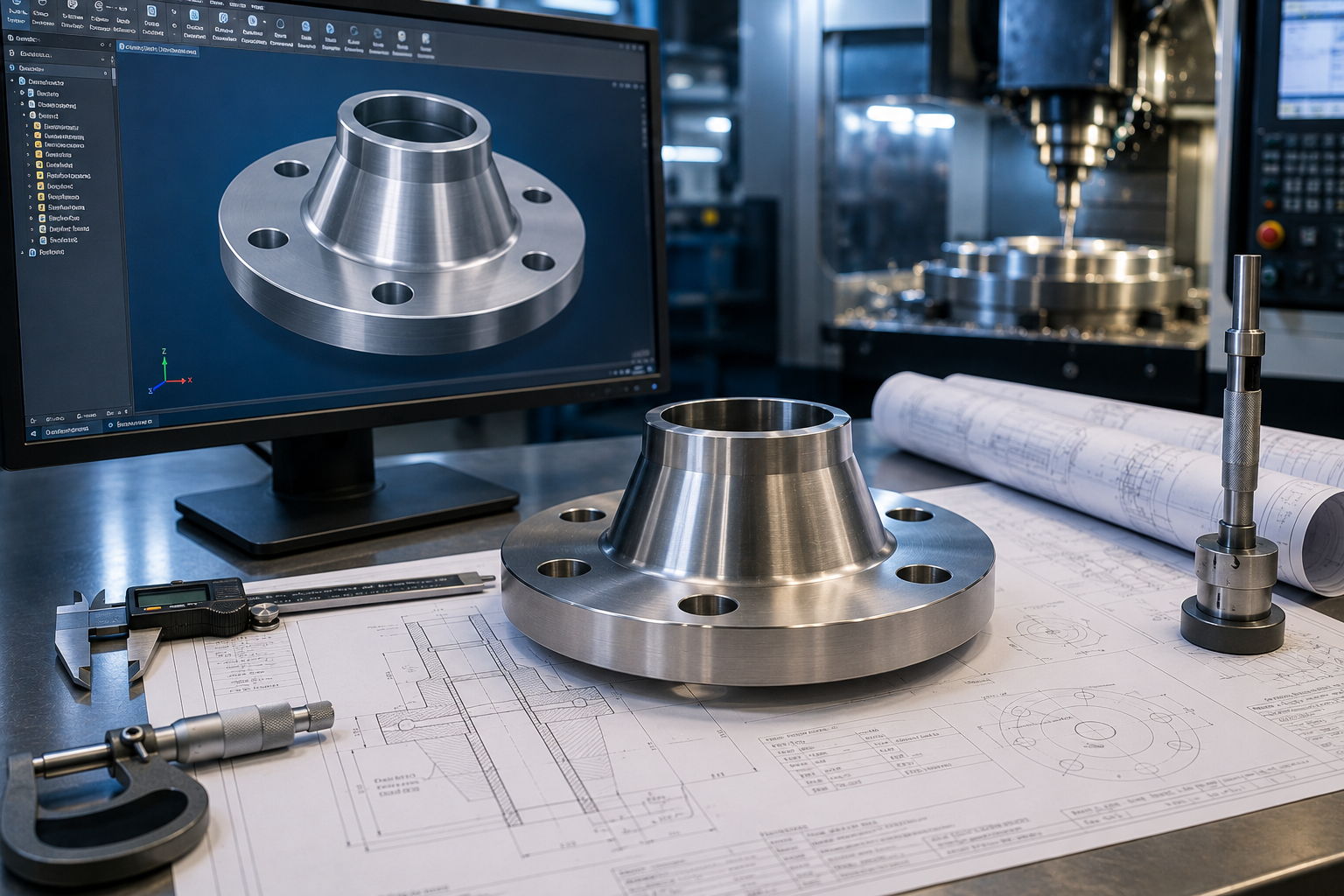

The Flat Face Weld Neck Flange (FF WN Flange) is engineered for mechanical strength, controlled load distribution, and reliable gasket sealing in piping systems where connected equipment is sensitive to localized flange loading. Its long tapered hub provides a gradual transition between the flange and pipe, helping distribute stress and improve fatigue resistance.
The flat face is precision machined to accommodate a full-face gasket, providing broad gasket contact across the flange surface. Manufactured through controlled forging processes, the flange offers high mechanical strength and durability. Heat treatment, when specified, and CNC machining help achieve accurate dimensions, bolt hole alignment, bore geometry, and the required surface finish.
Flat Face Weld Neck Flanges provide a reliable solution for piping systems where uniform load distribution and compatibility with sensitive equipment are important. Their long tapered hub, flat gasket seating surface, and robust forged construction provide structural strength while helping reduce localized loading on connected components.

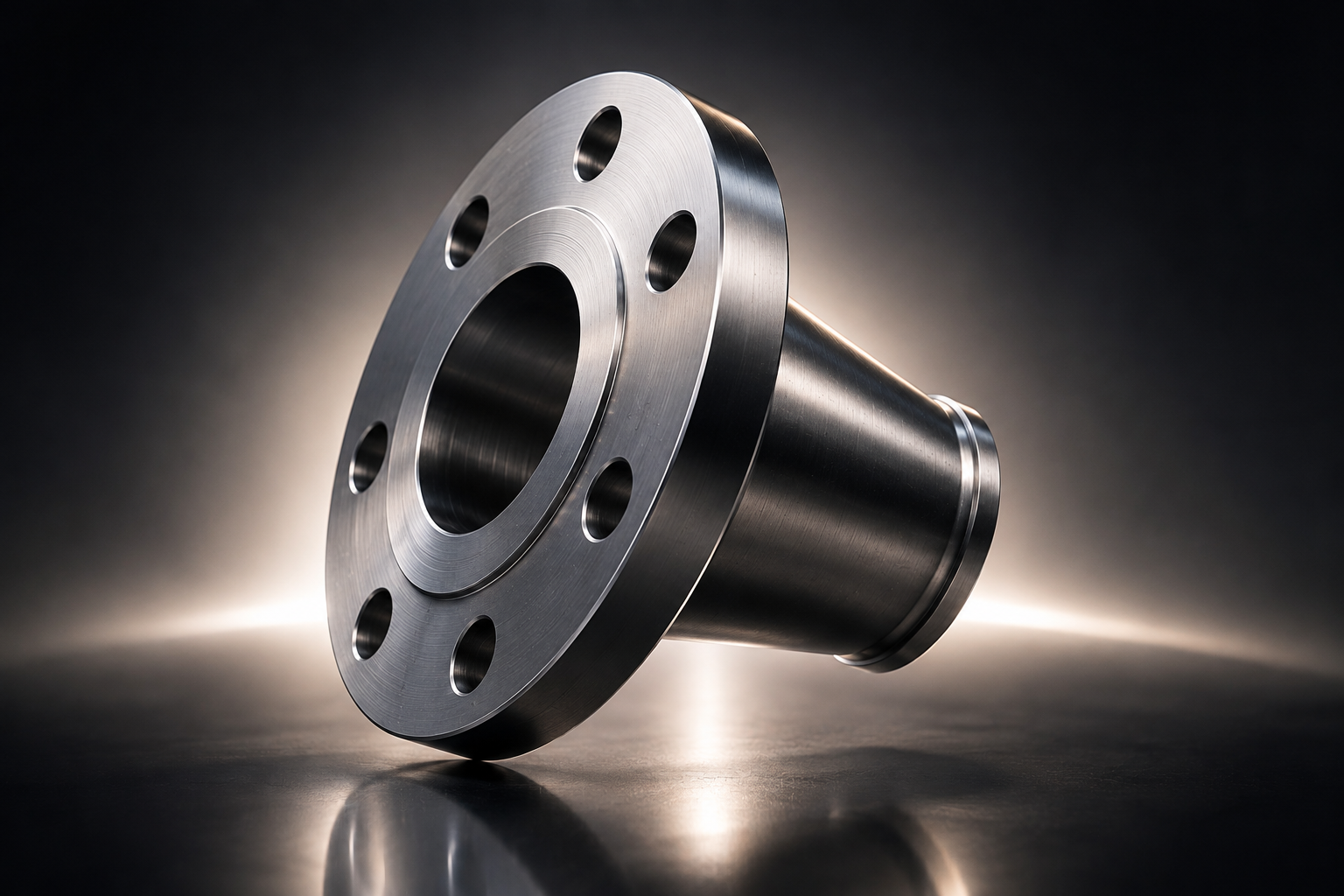

Flat face design helps distribute bolt load more evenly across the flange surface.
Suitable for cast iron, FRP, glass-lined, and plastic-lined systems where localized loading should be minimized.
Long tapered hub provides gradual stress transfer between the flange and pipe.
Designed for use with full-face gaskets covering the flange face.
Provides high mechanical strength and reliable long-term performance.
Ferrobend manufactures Weld Neck Flanges in a comprehensive range of Stainless Steel, Carbon Steel, Alloy Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Titanium, Copper Alloys, and other special engineering materials for demanding industrial applications.
304 • 304L • 316 • 316L
321 • 347 • + More Grades
A105 • LF2 • A350
A694 • A516 • + More Grades
F5 • F9 • F11 • F22
F91 • F92 • + More Grades
F51 • F60 • F52
F44 • S31803 • + More Grades
F53 • F55 • F61
S32750 • S32760 • + More Grades
200 • 201 • 625
825 • C276 • + More Grades
Inconel • Monel • Hastelloy
Incoloy • Alloy 20 • + More Grades
C70600 • C71500 • Brass
Bronze • Cu-Ni • + More Grades
Grade 2 • Grade 5 • Grade 7
Grade 12 • Grade 23 • + More Grades
Shaped between flat or contoured dies — ideal for large-diameter flanges, giving excellent grain flow and strength.
Metal forced into a two-piece die cavity, producing precise, tight-tolerance flanges with minimal machining.
Billet progressively shaped by rotating rollers, giving a uniform grain structure and high fatigue resistance.
Molten metal poured into a mould — a cost-effective process for complex geometries.
Our products are tested and certified as per international quality standards with complete traceability and documentation.
